Dettagli:
|
| Nome: | Pannello solare flessibile durevole | Dimensioni del pannello: | 115*98,5 cm |
|---|---|---|---|
| Marca: | KUOMAN | Tempo di lavoro (H): | 24 ore |
| Materiale: | Silicio monocristallino | Colore: | Nero |
| Massimo. Energia: | 200W | Materiale della pagina posteriore: | TPT |
| Misurare: | 515*525*3 mm | Colore di fondo: | Bianco o nero o trasparente |
| Ordine OEM: | Accettabile | Impermeabile: | IP65 |
| Tipo di connettore: | MC4 | Tipo di cella: | 125*125 mm |
| Tensione massima: | 3 volt | Modalità di uscita: | MC4/DC/Anderson |
| Parole chiave del prodotto: | Pannello flessibile | Efficienza: | 20% |
| Spessore: | 2,5 mm | Livello di protezione: | IP67 |
| Affidabilità: | non fragile, sicuro e affidabile |

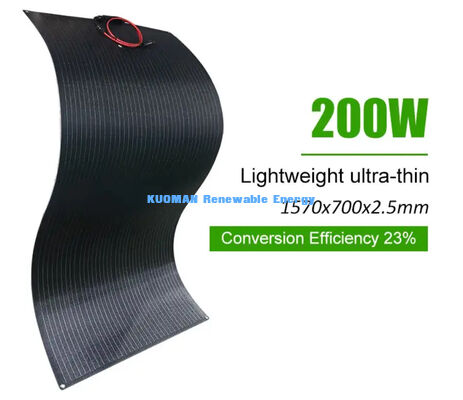

360 Degree Bendable bifacial flexible solar panel 200W FFC and carbon fiber
This product has acquired the relevant product qualification(s)/license(s) of certain applicablecountry/countries.
Advantage of 200W flexible solar panel :
1)Ultra thin and light;
2)IP68 waterproof level;
3)With long time life span;
4)Full power output;
5)Multifuntion port for more different devices,like 24V battery,power station,power generator,powerbank;
6)Can be bent to 360°;
7)Don't worry the solar cell with damage to lead to short current and fire risk--safe and stable;
8)With transparent material with bifacial function ;
9)with CE,ROHS,FCC certification;
10)With short leading time for 500-1000PCS for only 20 days.
Flexible solar panel Details Specification:
| Output Power(@STC ) | 210.0 W ±5% |
| Open Voltage(@STC) | 48.9V ±5% |
| Standard Voltage(@STC) | 40.0V ±5% |
| Standard Current(@STC) | 5.3A ±5% |
| Short Circuit(@STC) | 5.7A ±5% |
| Denier type eyelets | Inner-Diameter:6*25mm,Outer diameter:10*30mm,silver color |
| Accessories | Converge MC4 cable,14AWG |
Details of 200W flexible solar panel shown:
1.Fully waterproof conjunction box with silicon glue,specially with diode built in toavoid conversed connection;
2. Eyelet with Larger size ,easy to fix ;
3. 10PCS of eyelets left for multiple location to fix;
4.High efficiency solar cell up to 23% ;5.Universal and robust MC4 connector.
Flexible Solar Panel Specification:
| Brand Name | KUOMAN SOLAR |
| Model Number | KM FL210W |
| Material | FFC compound material+EVA+Mono solar cell+EVA+Carbon Fiber |
| Color | White/Black |
| Cell size | 182mmx182mm |
| Panel Dimensions | 115*98.5CM |
| Panel Efficiency | >=23% |
| OEM/ODM | Availble |
| Warranty | 1year |
FAQ
1.Can you supply OEM &ODM service ?
A:Yes, only MOQ regards.
2.What's kind of certificates and patent your products have acquired ?
A:1) Full of CE,ROHS,FCC,PSE,UL.2)Utility model of China and Appearance Patent of Europe.
3.Can I test the sample?
A:Yes,we can supply one sample to test with charge,and refunded of product itself on mass order.
Flexible Shipping Options:
Choose the method that best suits your needs based on urgency, budget, and order size.
Global Delivery:
Orders can be shipped worldwide from any port or railway station in China.
Door-to-Door Service:
Available for railway and express shipping, ensuring convenience for customers.
Cost and Speed Trade-Off:
Sea freight is cost-effective but slower, while air and express are faster but more expensive.
