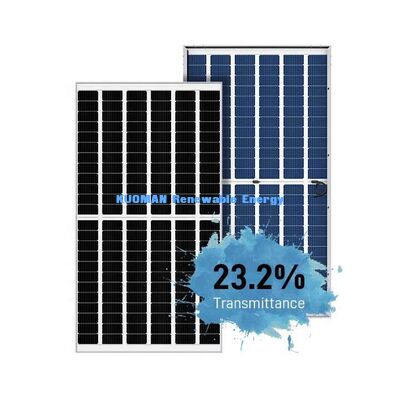

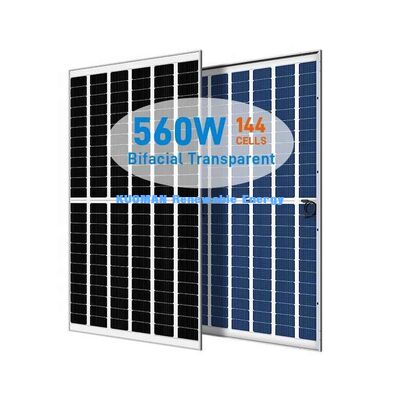

Frameless Glass 540W 550W Mono Perc Solar Panels

Frameless Glass 540W 550W Mono Perc Solar Panels
Frameless Glass 540W 550W Mono Perc Solar Panels Frameless Glass 540W 550W Mono Perc Solar Panels Frameless Glass 540W 550W Mono Perc Solar Panels Frameless Glass 540W 550W Mono Perc Solar Panels

Grande immagine :  Frameless Glass 540W 550W Mono Perc Solar Panels

Dettagli:
Luogo di origine: Cina
Marca: Kuoman
Numero di modello: Pannello solare KM500-600W
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1
Prezzo: USD1-100/pcs
Imballaggi particolari: imballaggio internazionale standard in cartone
Tempi di consegna: generale due settimane, più quantità in base alla quantità esatta
Termini di pagamento: L/C, L/C
Capacità di alimentazione: 10000 pezzi/mese
Contatto

Frameless Glass 540W 550W Mono Perc Solar Panels

descrizione
Nome: Pannelli solari monopercloro Misurare: 182mmx182mm
Efficienza del pannello: 22% Dimensioni del pannello: 2384 x 1303 x 35mm
Peso del modulo: 33kg

Frameless Glass 540W 550W Mono Perc Solar Panels



Structural Parameters
Cells
144pcs 182x91mm Monocrystalline solar cells
Module Dimension
2384x1303x35mm(LxWxH)
Module Weight
33kg
frame
Anodized aluminum profile
Junction Box
Rated current:25A,IP68,TUV
Cable
Length Negative 400mm/Positive 300mm
Connector
Compatible with MC4

Frameless Glass 540W 550W Mono Perc Solar Panels 0

STC
Maximum Power (Pmax)
540W
550W
560W
425W
430W
Maximum Power Voltage (Vmp)
40.72V
40.98V
41.24V
31.70V
31.88V
Maximum Power Current (Imp)
13.27A
13.43A
13.59A
13.41A
13.49A
Open-circuit Voltage (Voc)
49.33V
49.64V
49.95V
38.30V
38.49V
Short-circuit Current (Isc)
13.97A
14.14A
14.30A
14.15A
14.23A
STC
Irradiance 1000W/m2,cell temperature 25℃,AM1.5G
Operating Conditions
Maxi System Voltage
1000V/1500V DC
Temperature range
-40°C~+85°C
Series Fuse Rating
15A
NOTC
45±2℃
Temperature Coefficient of Isc(α-Isc)
+0.033%/℃
Temperature Coefficient of Voc(β-Voc)
-0.29%/℃
Temperature Coefficient of Pmax(Y-Pmp)
-0.39%/℃

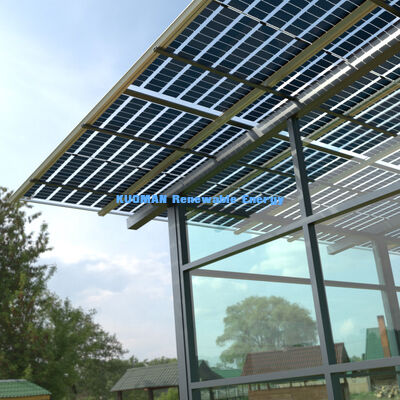

KUOMAN Case:

Frameless Glass 540W 550W Mono Perc Solar Panels 1

Frameless Glass 540W 550W Mono Perc Solar Panels 2



Prodotto Tag:

Solar Power Panel,

Ultra Slim Solar Panel,

Aluminum Frame Solar Panel
